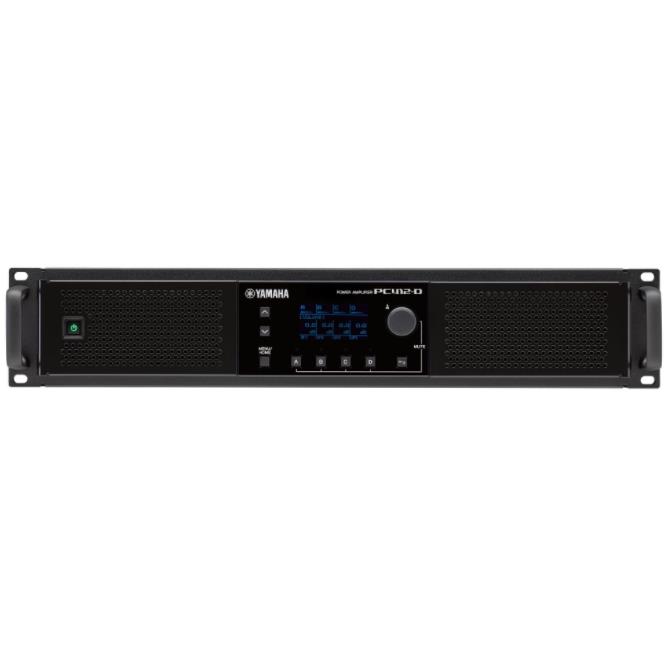

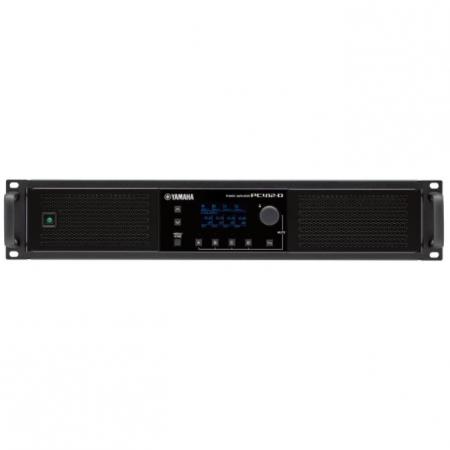

YAMAHA
瀏覽歷史
- 商品詳情
- 商品參數
- 商品評分
- 售后保障
系方式的圖片(4).jpg)
| 一般規格 | ||
| 輸出功率：1kHz，無失真，20msec爆音，所有驅動通道 | 16Ω | 600W x 4 |
| 8Ω | 1200W x 4 | |
| 4Ω | 1900W x 4 | |
| 2Ω | 2500W x 4 | |
| 8Ω（BRIDGE模式） | 3800W x 2 | |
| 4Ω（BRIDGE模式） | 5000W x 2 | |
| Hi-Z（70V 模式） | - | |
| Hi-Z（100V 模式） | - | |
| 功放類型 | Class D, Single ended output | |
| 總諧波失真 | 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven) | |
| 頻率響應 | +0.5, -1.5dB (8Ω, 1W, 35Hz to 20kHz) | |
| 串?dāng)_ | ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) | |
| 信噪比 | 112dB (8Ω, Gain setting = 32dB, A-weighted) | |
| 電壓增益/靈敏度 | 8Ω音量最大 | 32.0dB/+10.0dBu (Gain setting: 32dB), 26.0dB/+16.0dBu (Gain setting: 26dB), 38.0dB/+4.0dBu (Gain setting: +4dBu), 28.0dB/+14.0dBu (Gain setting: +14.0dBu) |
| Hi-Z 100V 模式，音量最大 | - | |
| Hi-Z 70V 模式，音量最大 | - | |
| 保護電路 | 荷載保護 | POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically) |
| 功放保護 | Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically) | |
| 電源保護 | Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | |
| 冷卻 | 7 step variable speed fan x 3, front to rear airflow | |
| 最大輸入電壓 | +28dBu | |
| 輸入阻抗 | 20kΩ (balanced) | |
| 采樣頻率 | 96kHz | |
| A/D D/A 轉換器 | AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling | |
| Dante Interface | 通道計數 | 16 IN with Dante Redundancy, 16 OUT |
| 采樣頻率 | 96/88.2/48/44.1kHz | |
| Dante延遲 | 0.25/0.5/1/2/5ms | |
| 位深 | 32/24bit | |
| 處理器 | 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter | |
| 延遲 | Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz) | |
| I/O 接口 | 模擬輸入 | XLR-3-31 x 4 |
| 數字 I/O | Dante Interface: etherCON x 2 (Redundant/Daisy Chain) | |
| 揚聲器輸出 | Neutrik speakON NL4 x 4 | |
| 控制端口 | RJ45 x 1 | |
| AC | AC inlet (powerCON 20A) x 1 | |
| 其它 | Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2) | |
| 指示燈 | Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED) | |
| 電源要求 | 100V - 240V 50Hz/60Hz ** | |
| 功耗 | 1850W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 105W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V) | |
| 工作溫度 | 0°C to +40°C | |
| 存儲溫度 | -20°C to +60°C | |
| 外形尺寸 | W | 480mm (18.90 inch) |
| H | 88mm (3.46 inch): 2U | |
| D | 528mm (20.79 inch) | |
| 凈重 | 16.0 kg (35.3 lbs) | |
| 附件 | Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4 | |
